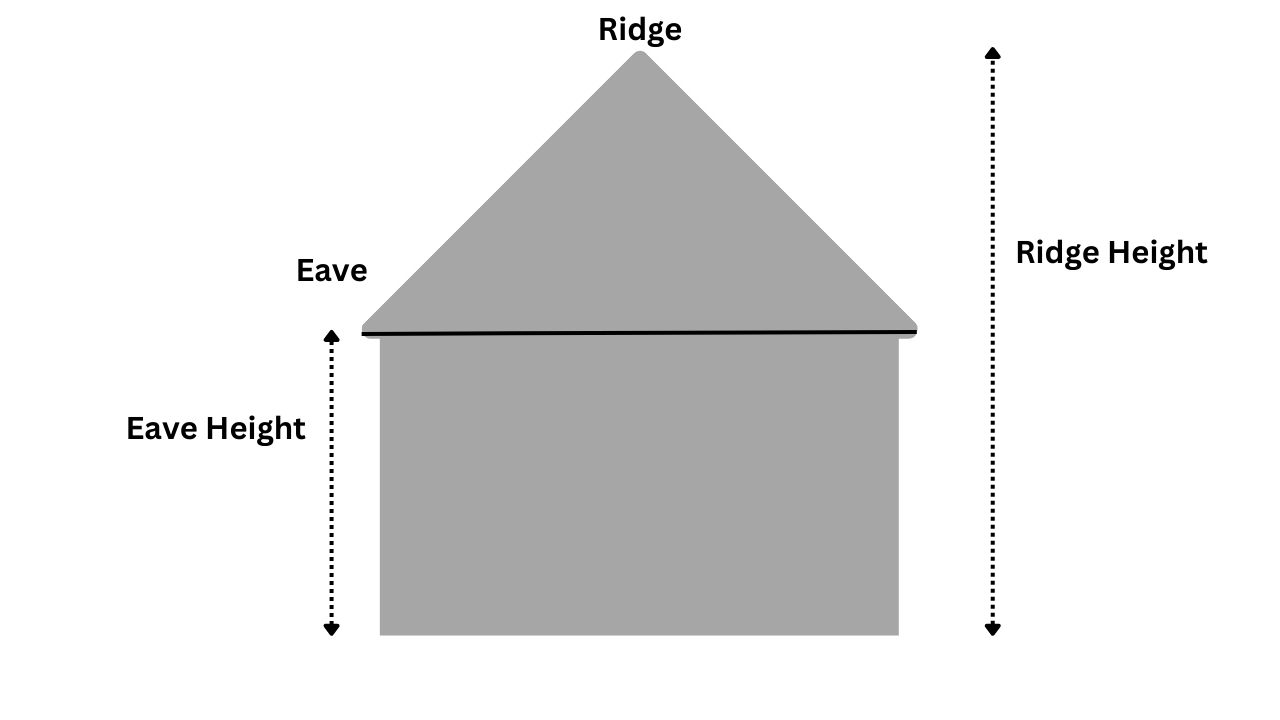

What Is Ridge Height?

The ridge height refers to the apex of a roof and plays a crucial role in determining its structural and aesthetic appeal. Accurate calculations ensure the roof design is practical and compliant with building codes.

Formula for Ridge Height Calculation

The ridge height can be calculated using the span, roof pitch, and rise/run ratio. The two most common formulas are:

Method 1: Using Span and Roof Pitch in Degrees

Ridge height can be derived from the span (total width of the roof) and the pitch angle.

Ridge Height=Span2tan(Roof Pitch)\text{Ridge Height} = \frac{\text{Span}}{2} \cdot \tan(\text{Roof Pitch})

Method 2: Using Rise and Run Ratio

For a roof defined by its rise-to-run ratio, you can calculate ridge height as:

Ridge Height=RunRiseRun\text{Ridge Height} = \text{Run} \cdot \frac{\text{Rise}}{\text{Run}}

Example 1: Ridge Height Calculation with Span and Pitch

Let’s calculate the ridge height for a roof with a span of 20 meters and a roof pitch of 30 degrees.

  1. Span: 20 m
  2. Roof Pitch: 30°

Formula:

Ridge Height=Span2tan(Roof Pitch)\text{Ridge Height} = \frac{\text{Span}}{2} \cdot \tan(\text{Roof Pitch})

Substitute Values:

Ridge Height=202tan(30)\text{Ridge Height} = \frac{20}{2} \cdot \tan(30^\circ)

Solution:

Ridge Height=100.5774=5.774m\text{Ridge Height} = 10 \cdot 0.5774 = 5.774 \, \text{m}

Example 2: Ridge Height Calculation Using Rise and Run

For a roof where the rise-to-run ratio is 4:12, and the span is 24 feet, calculate the ridge height.

  1. Span: 24 ft
  2. Run: Half of Span = 12 ft
  3. Rise-to-Run Ratio: 4:12

Formula:

Ridge Height=RunRiseRun\text{Ridge Height} = \text{Run} \cdot \frac{\text{Rise}}{\text{Run}}

Substitute Values:

Ridge Height=12412\text{Ridge Height} = 12 \cdot \frac{4}{12}

Solution:

Ridge Height=120.3333=4ft\text{Ridge Height} = 12 \cdot 0.3333 = 4 \, \text{ft}

FAQ

How is ridge height determined?

Ridge height is typically determined by the building's architectural design and local building codes. It may also be influenced by factors like the desired roof pitch, the size of the building, and the surrounding environment.

Can ridge height be changed?

In some cases, it's possible to modify the ridge height of an existing building. However, this often requires significant structural changes and may not be feasible or cost-effective. It's always best to consult with a qualified architect or engineer before making any changes to a building's structure.

Can I determine ridge height without knowing the roof pitch?

No, you need either the roof pitch (in degrees) or the rise-to-run ratio to calculate the ridge height accurately. Without this information, it’s impossible to calculate the slope of the roof.
